NadAuto-48R Fully-automated NGS Workstation

Catalog Number:

#1007504

NadAuto-48R Fully-automated NGS Workstation, independently developed by Nanodigmbio, is specially designed for automated NGS library preparation. It encompasses sample dispensing, nucleic acid extraction, DNA normalization, nucleic acid purification, quantitative loading, and sample mixing, library preparation, and hybrid capture, all aimed at dramatically accelerating laboratory throughput and advancing scientific discovery. The workstation is equipped with a 24-channel pipetting head that flexibly supports the loading of 1/8/16/24 pipette tips and seamlessly integrates a plate gripper, thermal cycler (brand optional), temperature control module, heating and oscillating module, purification module, fluorometer module, UV lamp set, and HEPA filtration system. With 24 built-in SBS standard plate positions, this workstation achieves a maximum throughput of up to 48 pre-libraries or 24 hybrid capture reactions per run, meeting the demands of large-scale, high-throughput applications.

Request Quote

Product details
Ordering Information
Resources

Feature

01 Flexible Integration

24 standard SBS built-in plate positions, allowing freely configurable dynamic deck layouts to meet diverse experimental needs.
Seamless integration of multifunctional components, including thermal cycler, temperature control, heating and oscillation, purification, and fluorometer modules.
Equipped with a HD wide-angle camera for continuous video recording of operations, facilitating retrospective error review.
A 3D robotic arm with a plate gripper intelligently handles various consumables, ensuring complete deck coverage.

02 Versatile Application

Multi-channel pipetting (1/8/16/24) with liquid-level detection and intelligent tracking for precise dispensing.
24-channel pipetting head offers segmented Z-axis descent (movement, detection and aspiration).
Supports a maximum throughput of up to 48 pre-libraries or 24 hybrid capture reactions, meeting varying throughput demands.

03 User-friendly Simplicity

Preset for NGS library preparation and hybrid capture; supports custom applications and script development.
Magnetic sliding window design for effortless operation and enhanced user comfort.
High-definition touch-sensitive LCD screen with adjustable height and angle for easy viewing and operation.
Graphical process editing with drag-and-drop script elements enables zero-threshold visual programming for seamless human-machine interaction.

04 Secure and Reliable

Bright, multi-color status indicator lights provide real-time updates on operational status, minimizing downtime caused by hardware or software errors.
Equipped with an emergency pause button for one-touch emergency stops, ensuring human-machine safety.
Standard HEPA filtration system and UV lamp maintain a continuously clean operating environment.

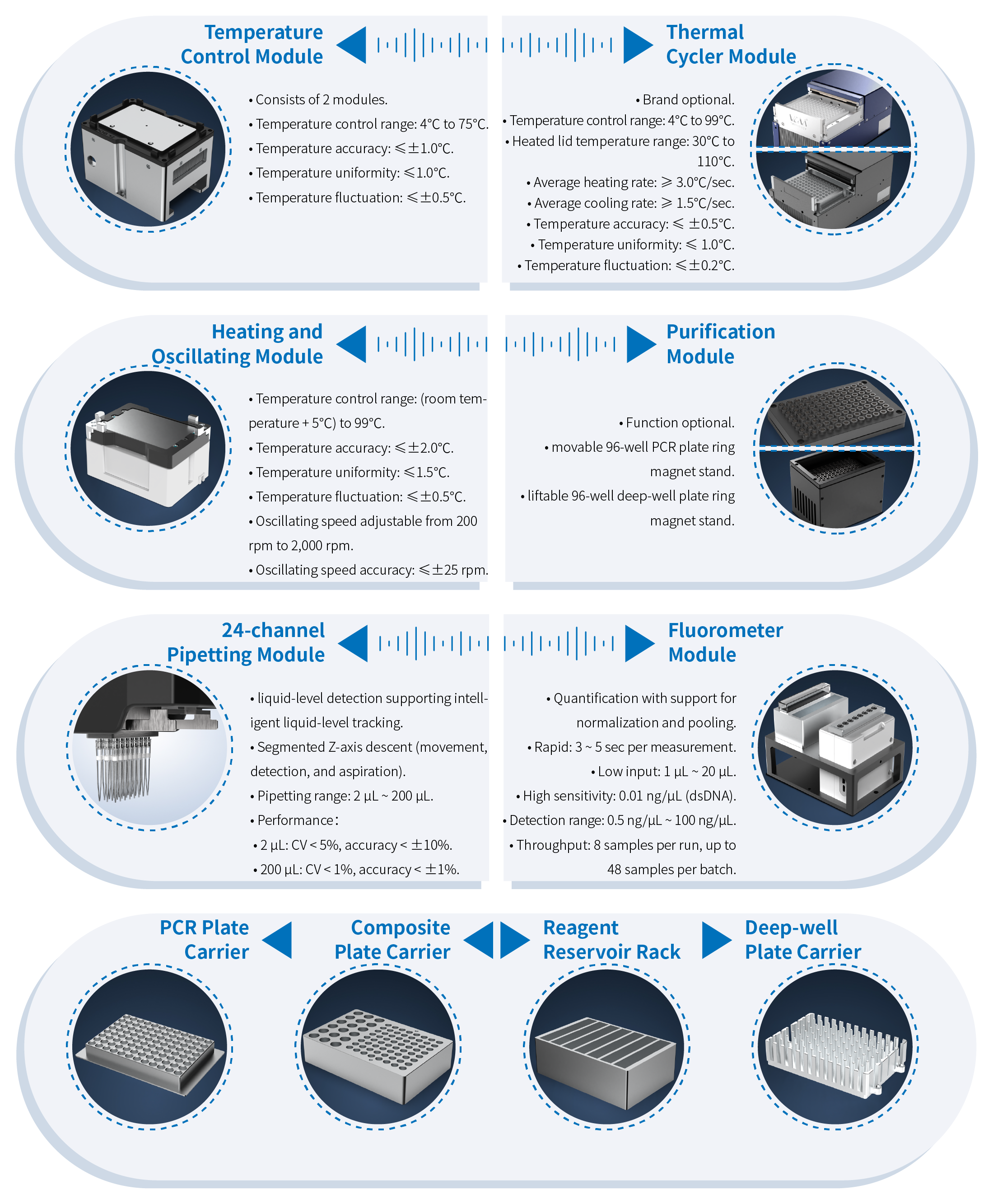

Functional Component

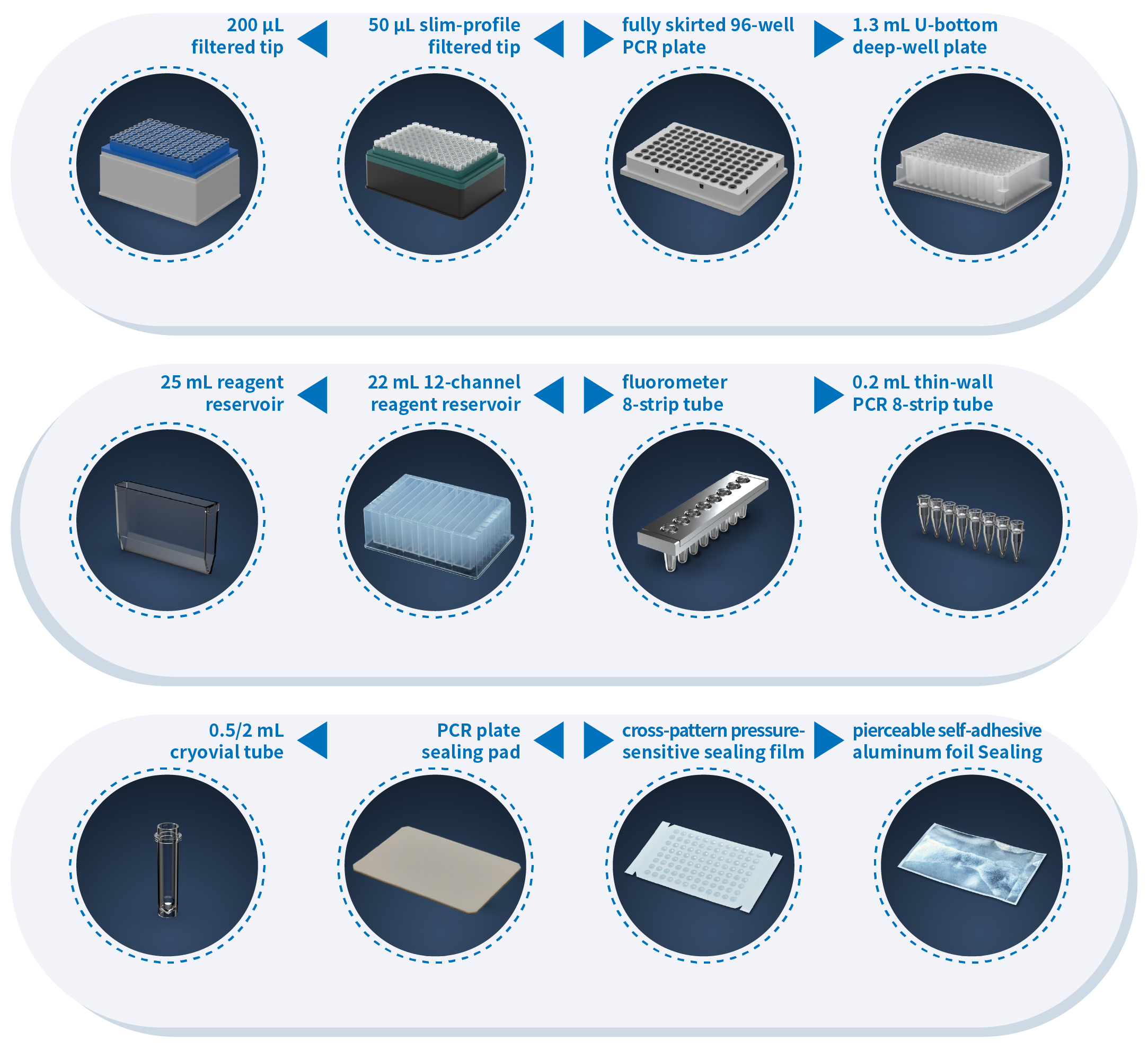

Consumable

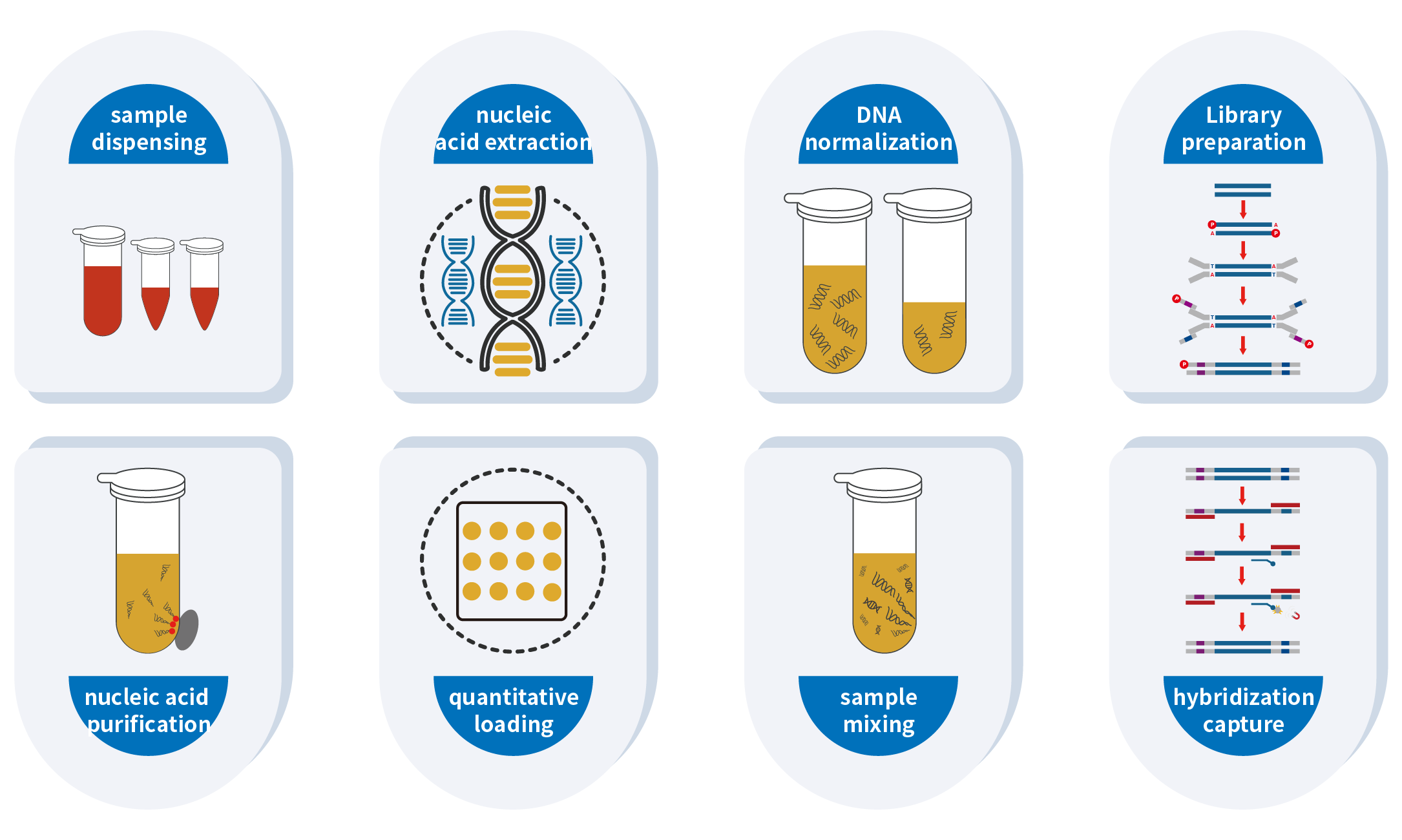

Application

Specification

Host Parameters	Size	1,160 mm (width) × 800 mm (depth) × 955 mm (height)	Weight	200 Kg
Host Parameters	Maximum output power	1700 VA
Power Requirements	Voltage	AC 100 V ~ 240 V	Frequency	50/60 Hz
Operating Environment	Temperature range	10℃ ~ 30℃	Relative humidity	20% ~ 80%, non-condensing
Operating Environment	Barometric pressure range	86 kPa ~ 106 kPa
Robot Arm	Repeated positioning	± 0.1 mm
