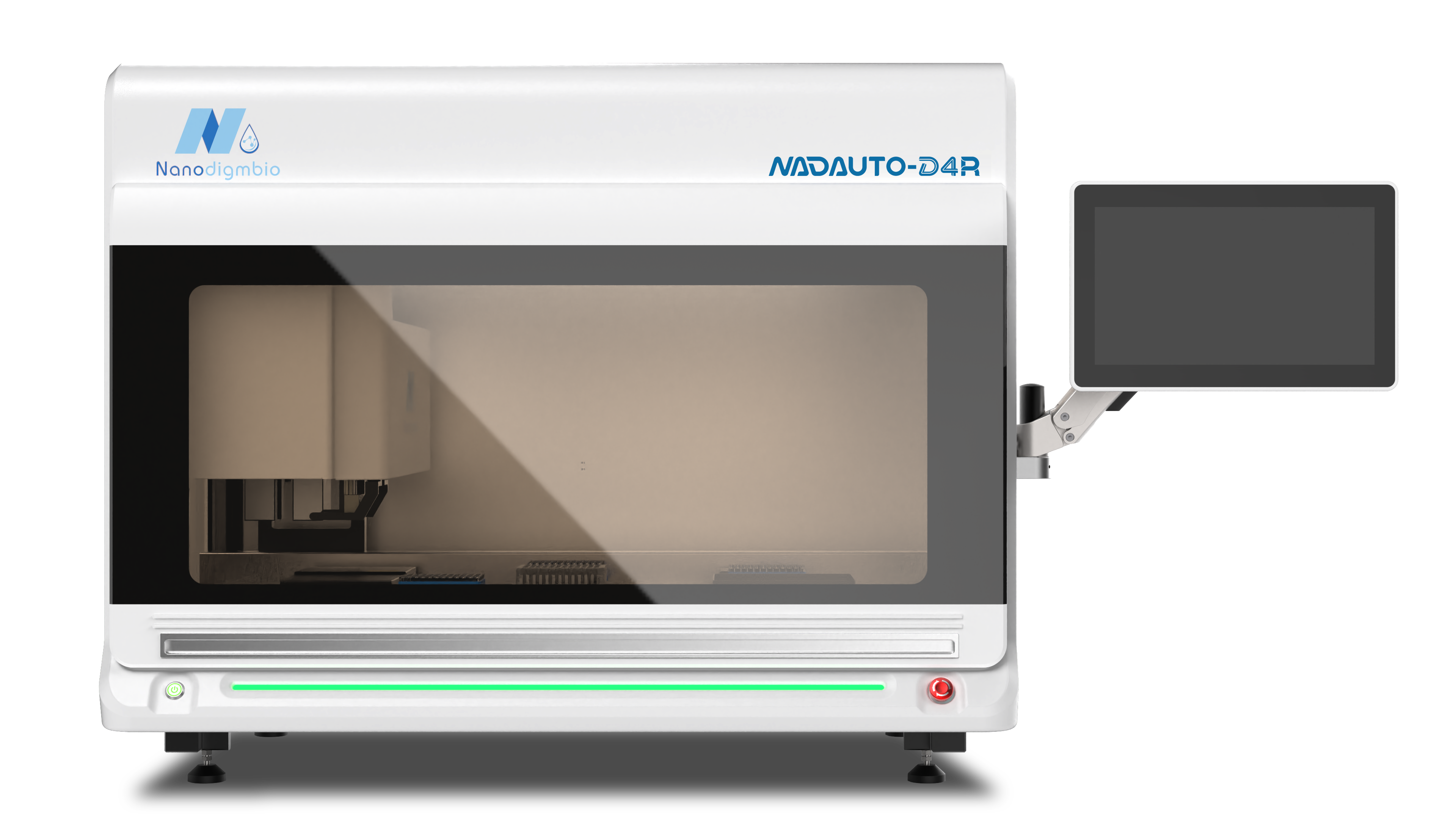

NadAuto-D4R Fully-automated NGS Workstation

Catalog Number:

#1007302

NadAuto-D4R Fully-automated NGS Workstation, independently developed by Nanodigmbio, is designed for automated library preparation in gene sequencing. It supports a wide range of automated operations, including sample dispensing, nucleic acid extraction, DNA normalization, nucleic acid purification, quantitative loading, and sample mixing, library preparation, and hybrid capture, significantly improving laboratory efficiency. The workstation features four independent pipetting channels and seamlessly integrates a plate-gripping module, thermal cycler (brand optional), temperature control module, heating and oscillating module, purification module, fluorometer module, UV lamp set, and HEPA filtration system. With 20 built-in SBS standard plate positions, this workstation achieves a maximum throughput of up to 32 library preparations or 16 hybrid captures per run.

Request Quote

Product details
Ordering Information
Resources

Feature

01 Flexible Integration

20 standard SBS built-in plate positions, allowing modules to be freely configured to meet diverse experimental needs.
Seamless integration of multifunctional components, including thermal cycler, temperature control, heating and oscillation, purification, and fluorometer modules.
A 3D robotic arm with a plate gripper intelligently handles various consumables, ensuring complete deck coverage.

02 Versatile Application

Four independent pipetting channels with liquid level detection and intelligent tracking for precise liquid handling.
Each channel supports variable spacing, volume, and height pipetting to accommodate diverse requirements.
Flexibly supports 1-32 library preparations and 1-16 hybridization captures, meeting varying throughput demands.

03 User-Friendly Simplicity

Magnetic sliding window design for effortless operation and enhanced user comfort.
High-definition touch-sensitive LCD screen with adjustable height and angle for easy viewing and operation.
Graphical process editing with drag-and-drop script elements enables zero-threshold visual programming for seamless human-machine interaction.

04 Secure and Reliable

Bright, multi-color status indicator lights provide real-time updates on operational status, minimizing downtime caused by hardware or software errors.
Equipped with an emergency pause button for one-touch emergency stops, ensuring human-machine safety.
Standard HEPA filtration system and UV lamp maintain a continuously clean operating environment.

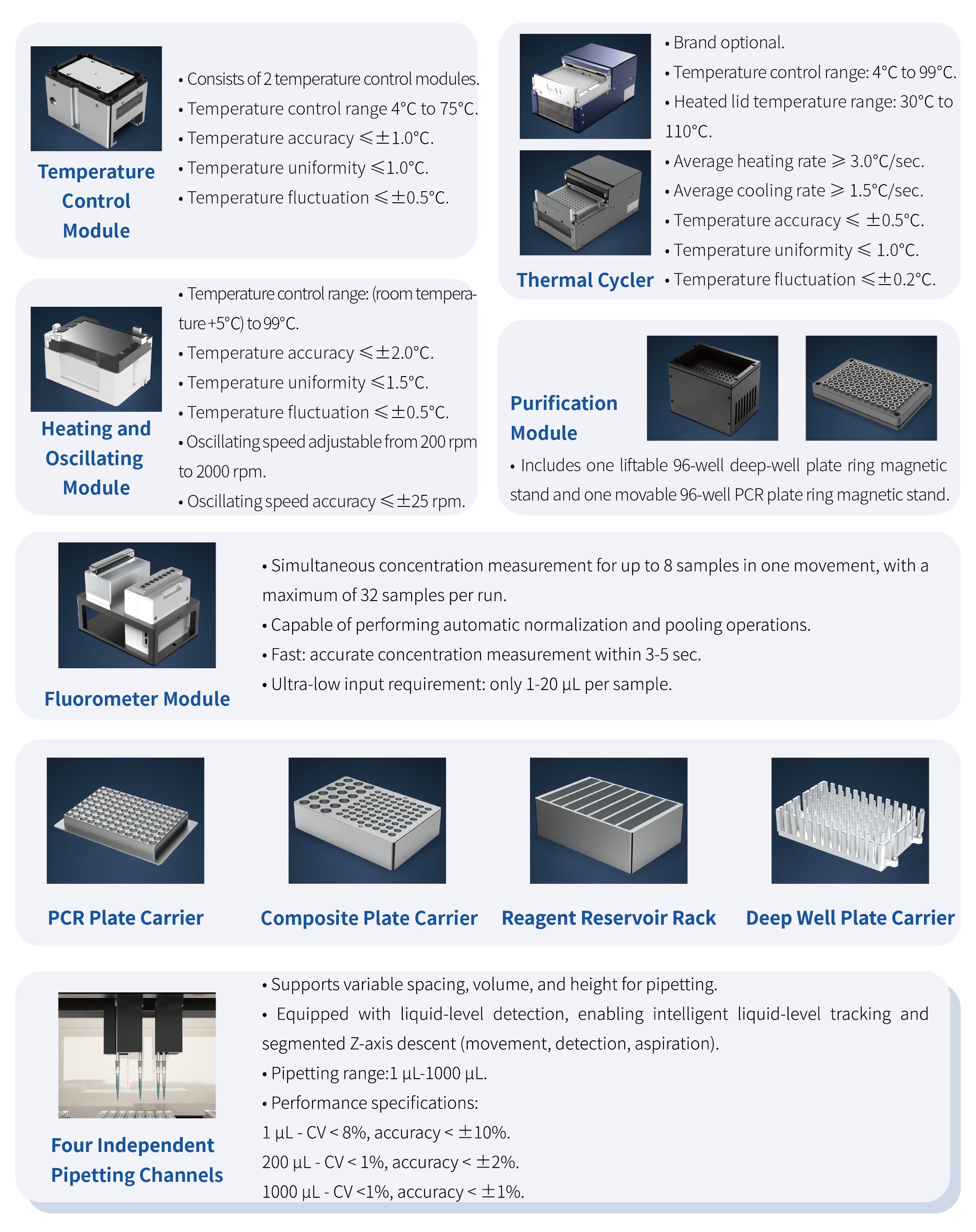

Functional Component

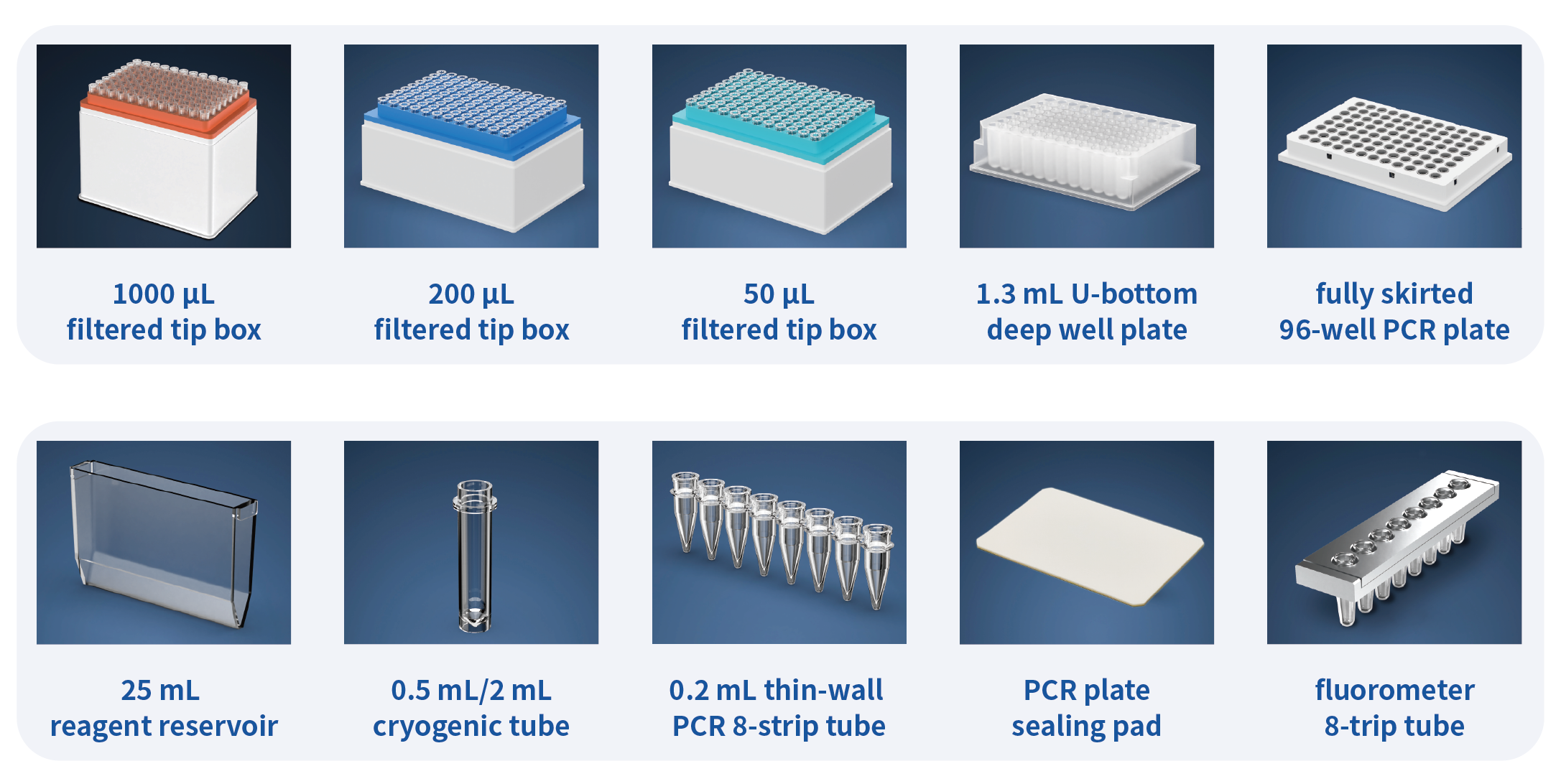

Consumables

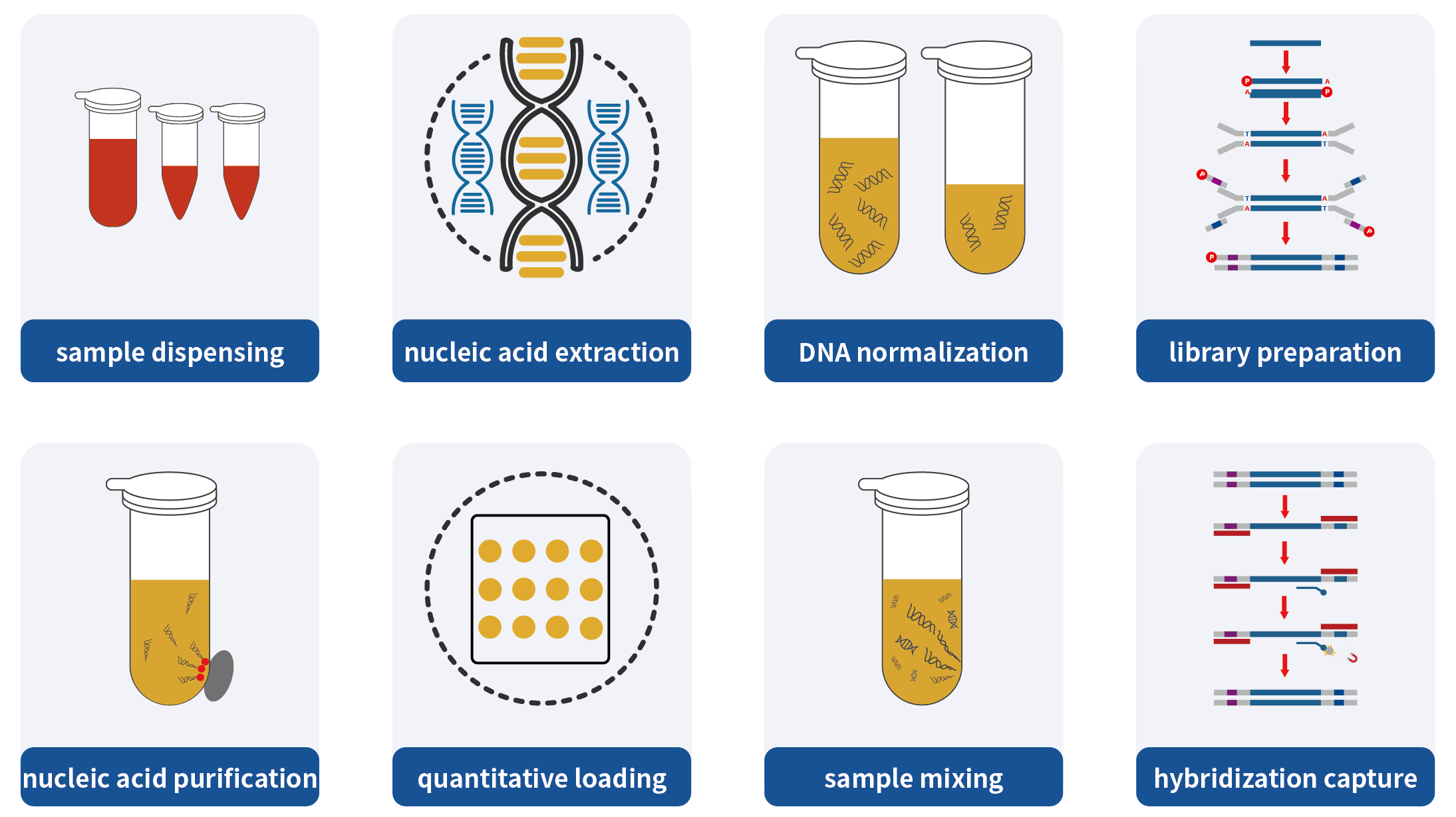

Application

Specification

Host Parameters	Size	1160 mm (length) × 815 mm (width) × 970 mm (height)	Weight	180 Kg
Host Parameters	Maximum output power	1700 VA
Power requirements	Voltage	AC 100-240 V	Frequency	50/60 Hz
Operating environment	Temperature range	10℃~30℃	Relative humidity	20%~80%, non-condensing
Operating environment	Barometric pressure range	86 kPa~106 kPa
Robot arm	Repeated positioning	± 0.1 mm
